ECOflex Coupling

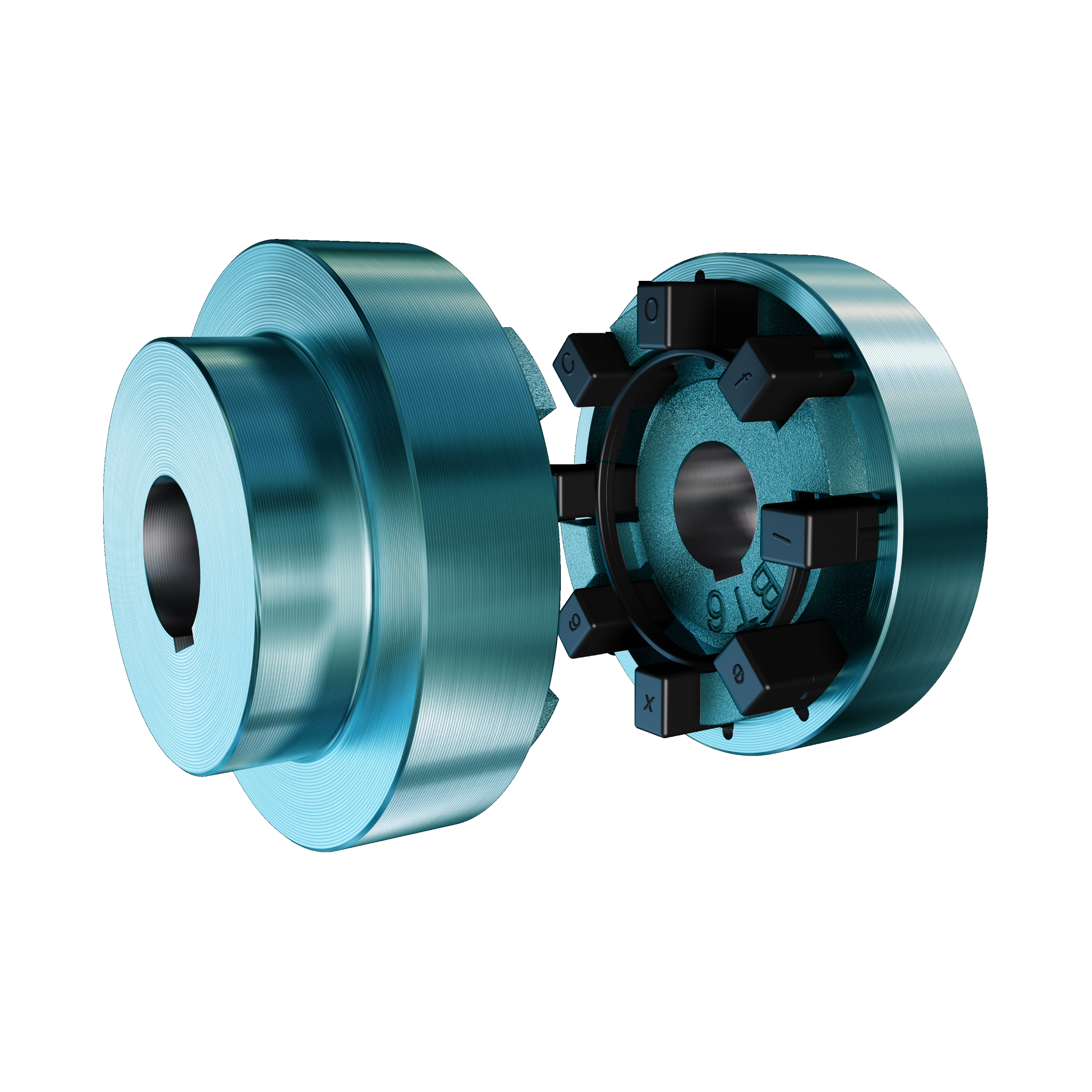

With its basic version BT, the ECOflex coupling consists of two identical coupling halves made of EN-GJL250.
Each coupling half comprises a number of claws which fit in the recesses provided in the other half, but which are separated by the high quality flexible NBR elements. The flexible elements are only loaded in compression.
Depending on the coupling size, either several individual elements or a single circular element is used.
Strengths
- Torque Range: 40 to 3000 Nm
- ATEX certified for gas atmosphere (II 2G T4) and Dusty environment (II 2D 120°C) (from size P.355)
Features | Benefits
- Symmetrical design => Reduced inventory
- Fail Safe design => For Security application
- Unitized elements => Easier replacement
Versions
- Taper bush version type BTB
- Spacer Version type BTP
Read more
BTB Version
This version uses conical bushes Magic-Lock with tightening by screw between leather and flesh. Trays are available with the tightening of cartridges or by the inside ( BTB.-11) or around ( BTB.-22). A combination of these two types of trays is possible ( BTB.-12).
BTP Version
This version with brought reported hubs suits particularly in the training of pumps.
She allows to uncouple without modification of the alignment of trees.
BTJ Version
This version with tray(plateau) in light alloy is available in size 4 with bore of stock.
